LUX seriesProduct Detail

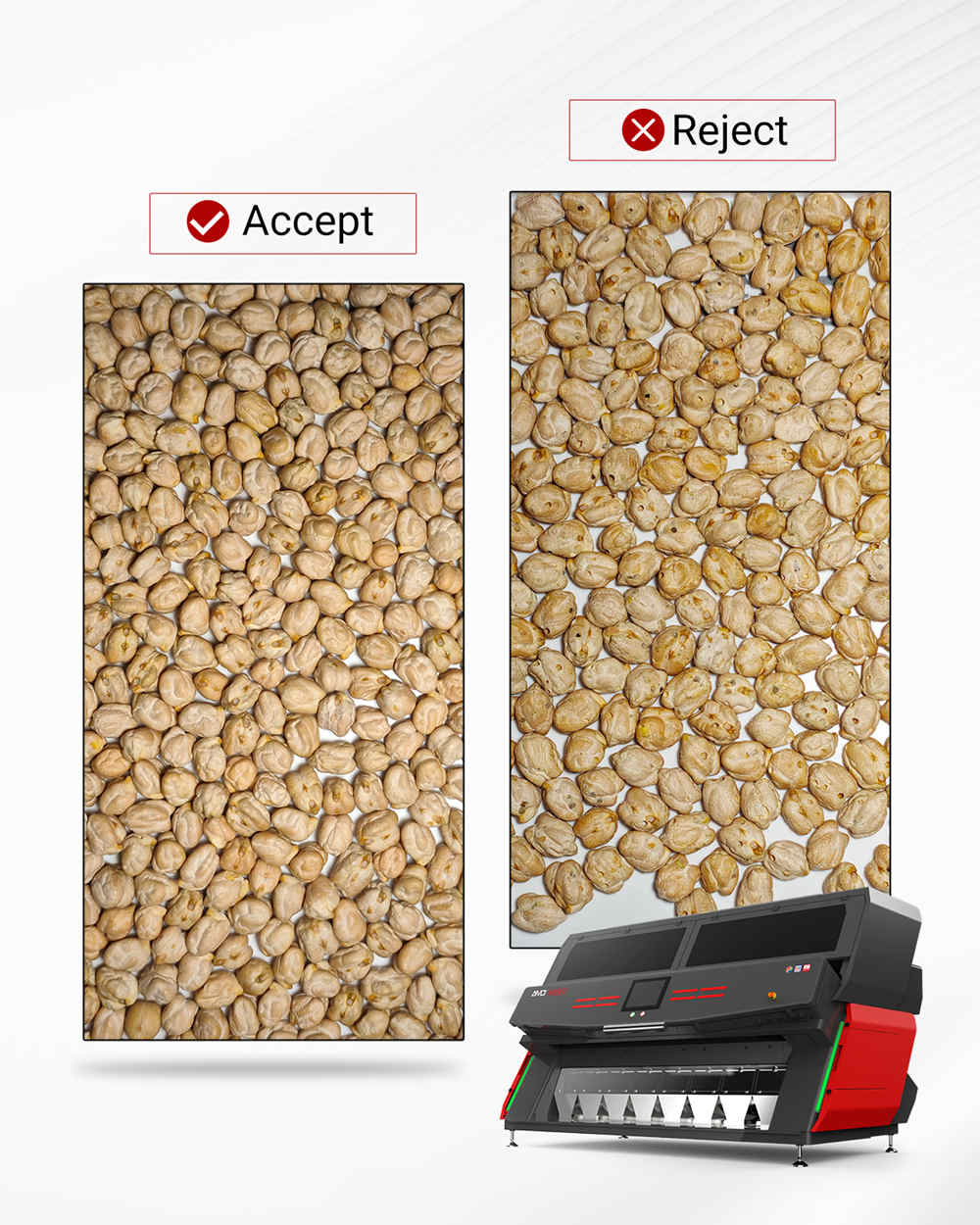

LUX Series Optical Sorter is engineered for applications where conventional optical sorting struggles with blind spots, unstable purity, and excessive good-product loss.
By combining AI-driven full 360° inspection with a fully enclosed, industrial-grade architecture, LUX enables reliable detection of subtle defects while maintaining long-term sorting stability in continuous grain, bean, pulse, and food processing environments.
In real processing environments, maintaining consistent sorting performance over long operating periods is often challenged by a combination of factors, including dust-related performance drift, material variability, and subtle defect characteristics.
Why LUX Delivers More Stable Sorting Results?
Unlike conventional open-frame optical sorters that are easily affected by dust, vibration, and environmental fluctuations, LUX adopts a fully enclosed architecture to create a controlled sorting environment.
Combined with high-speed ejectors and automatic targeting, this design helps reduce false rejects, protect optical components, and maintain consistent sorting accuracy—even under high-throughput, long-term operation.
Dimensions and specifications
| Model | LUX5-C | LUX7-C | LUX8-C |
|---|---|---|---|
| Structure | 5-Chute | 7-Chute | 8-Chute |
| Throughput | 3-5 t/h | 3.5-6 t/h | 5-10 t/h |
| Air Pressure | 0.6-0.8 MPa | 0.6-0.8 MPa | 0.6-0.8 MPa |
| Power | 2.2 kW | 3.01kW | 5.9 kW |
| Weight | 1420 kg | 1780kg | 1960 kg |
| Dimension (L*W*H) | 2270*1860*1815 mm | 2846*1860*1815mm | 3134*1860*1802 mm |
Note: The above parameters may vary depending on the impurity content of raw materials.
Frequently Asked Questions about LUX Optical Sorters
1️⃣ What makes LUX unique?
Answer: The LUX Series features full 360° inspection, fully enclosed architecture, and advanced flow control, enabling higher sorting purity, precise defect removal, and stable performance during long production cycles. Its intelligent monitoring systems maintain consistent accuracy despite dust, material variability, and subtle defects, ensuring reliable results across a wide range of agricultural raw materials and food ingredients.
2️⃣ Which processing scenarios is LUX designed for?
Answer: LUX is suitable for a wide range of agricultural raw materials and food processing operations, including grains, pulses, nuts, and other food ingredients. It addresses common challenges such as subtle defects, dust-related performance drift, and material variability, making it effective for both primary and fine sorting.
3️⃣ How does LUX perform with color-similar or minor defects?
Answer: LUX’s full 360° inspection and high-speed ejectors enable accurate detection of subtle color and surface defects. This ensures improved product purity while minimizing good-product loss, even with challenging materials where traditional sorters struggle.
4️⃣ Will long-term operation affect performance?
Answer: The fully enclosed architecture, positive-pressure dust protection, and closed-loop vibratory control maintain stable sorting performance over extended production cycles. Continuous monitoring ensures consistent material presentation and reliable defect detection.
7️⃣ Is LUX suitable for retrofitting old lines or multi-unit setups?
Answer: LUX supports PLC integration and centralized control, allowing seamless integration into existing production lines. Multiple units can operate in parallel without compromising throughput or sorting consistency.
