The AMD® RC Series grain sorting machine combines advanced imaging and stable performance to sort grains, beans, nuts, and seeds with precision.
Item NO.:
RC-EProduct Detail
Product Description

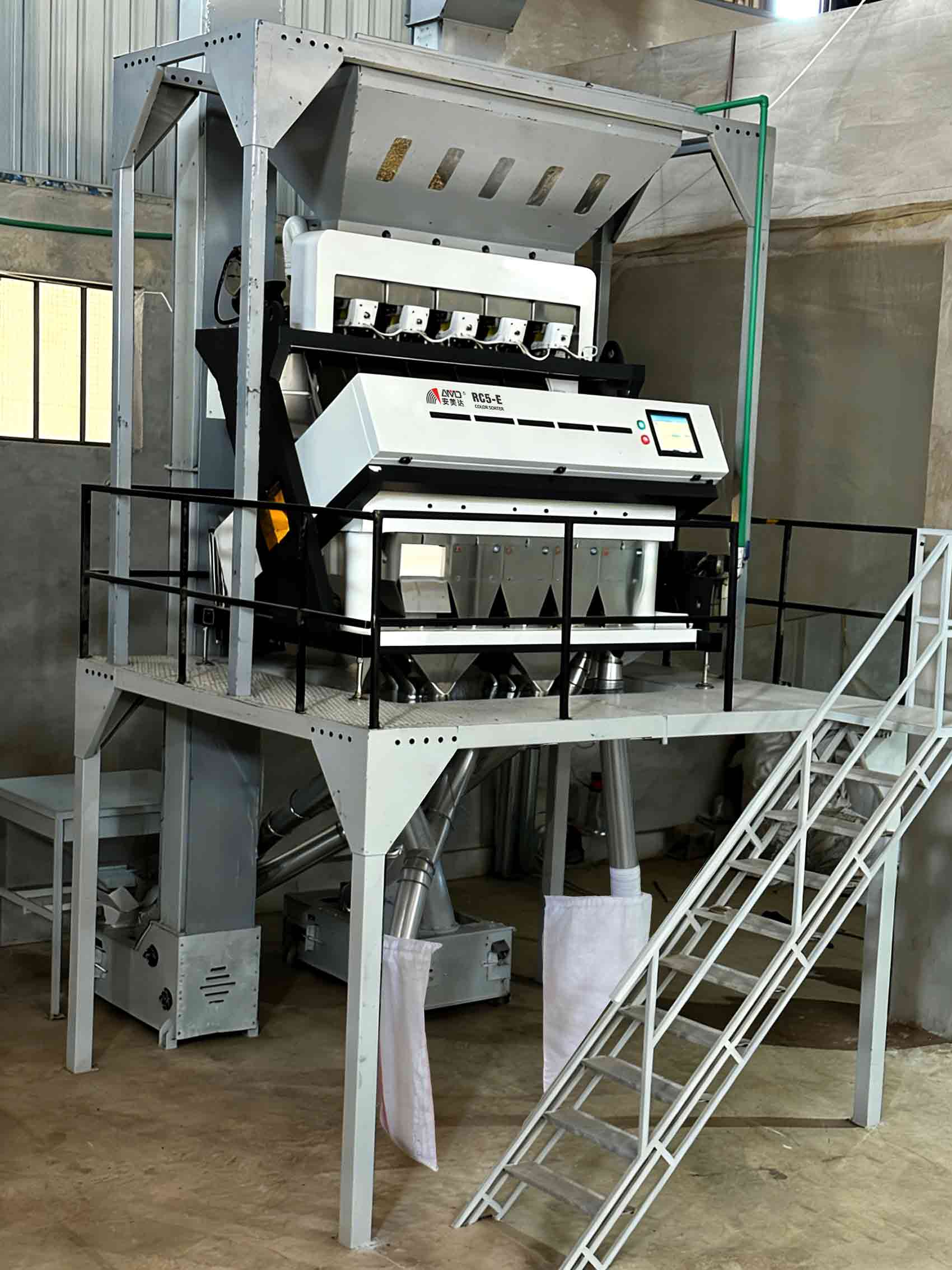

The AMD® RC-E Series multipurpose grain sorting machine integrates advanced visible-light sorting technologies. It is mainly used for sorting various grains, including wheat, corn, beans, nuts, and seeds. Powered by AMD’s intelligent algorithms, the RC-E Series delivers high-precision sorting performance to meet the diverse needs of different grain materials.
Core Technologies
Sorting Applications
Technical Parameters
| Model |
Throughput (T/H) |
Accuracy (%) |
Voltage (V/Hz) |
Power (KW) |
Weight (Kg) |
Dimension (mm) |
|---|---|---|---|---|---|---|
| RC2-E | 1-2.5 | ≥99.9% | 220/50 | 1.5 | 800 | 1403*1829*1887 |
| RC3-E | 2-3.5 | ≥99.9% | 220/50 | 2.2 | 960 | 1718*1829*1887 |
| RC4-E | 2.5-4 | ≥99.9% | 220/50 | 2.9 | 1120 | 2033*1829*1887 |
| RC5-E | 3-5 | ≥99.9% | 220/50 | 3.7 | 1280 | 2348*1829*1887 |
| RC6-E | 3.5-6 | ≥99.9% | 220/50 | 4.4 | 1440 | 2663*1829*1887 |
| RC7-E | 4-7 | ≥99.9% | 220/50 | 5.2 | 1600 | 2978*1829*1887 |
| RC8-E | 4.5-8 | ≥99.9% | 220/50 | 5.9 | 1800 | 3293*1829*1887 |
| RC10-E | 5-10 | ≥99.9% | 220/50 | 7.3 | 2150 | 3933*1829*1887 |
| RC12-E | 6-12 | ≥99.9% | 220/50 | 8.8 | 2500 | 4563*1829*1887 |
Note: The above parameters will vary according to the impurity content of raw materials.
